976nm-140W (VBG)

BWT has nearly two decades of design, development, and manufacturing experience in the field of diode laser fiber coupling. This type of diode laser is used in fiber laser pump source applications. Based on a variety of coupling technology solutions and thermal management, the products can meet the power, brightness, wavelength control, power-to-weight ratio, and other special requirements of different customers.

BWT widely uses automation equipment to ensure the consistency of batch product performance; Multiple quality inspections are performed on each chip and component to ensure long-term reliability; Experienced Chinese and European technical teams provide products for product design, development, and manufacturing. Solid technical support.

Main features:

Wavelength

976±1nm

Output power

140W

Fiber core diameter

105μm

Optical fiber numerical aperture

0.22 NA

Feedback protection

1020nm~1200nm

Application:

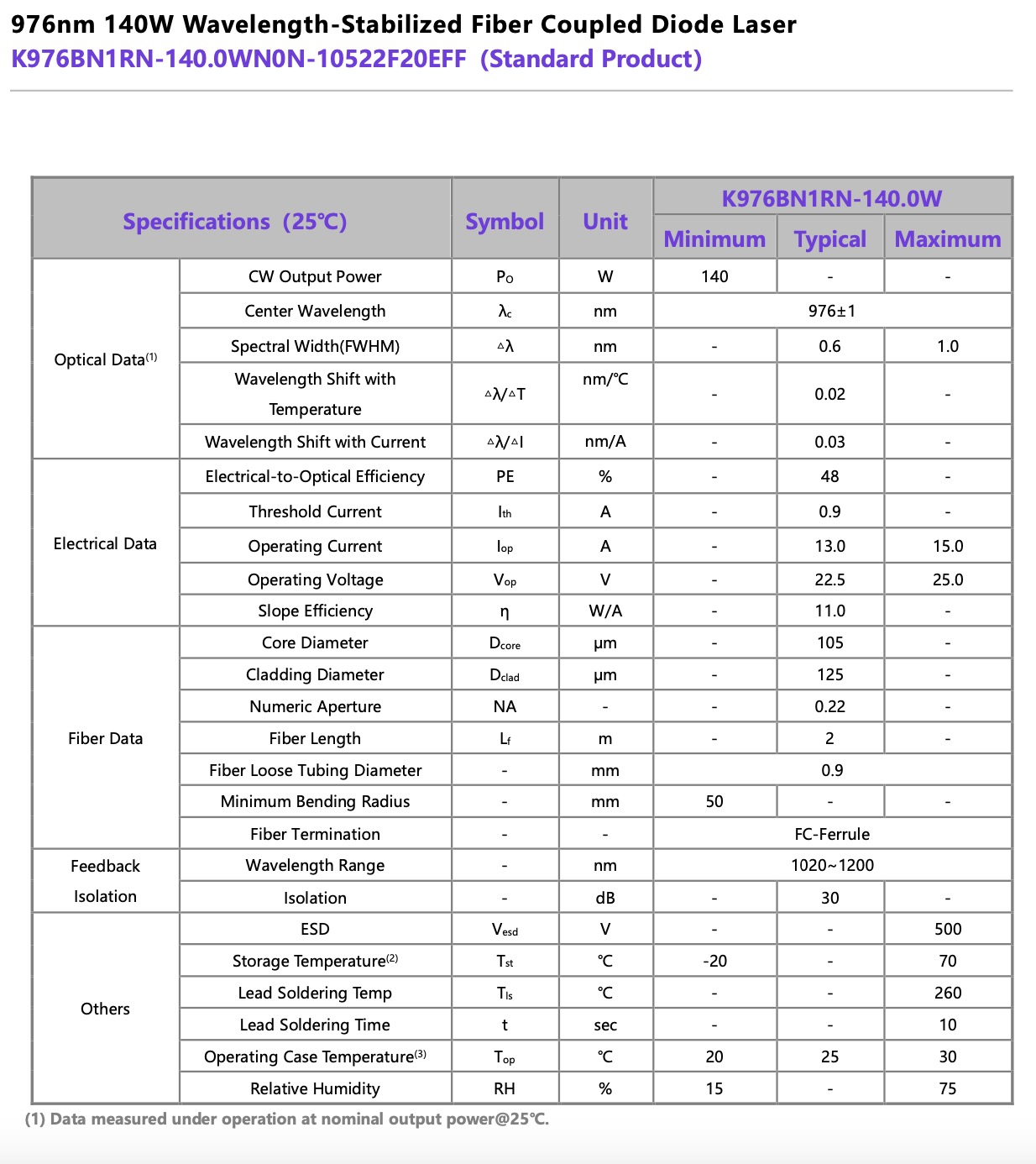

Performance Parameter

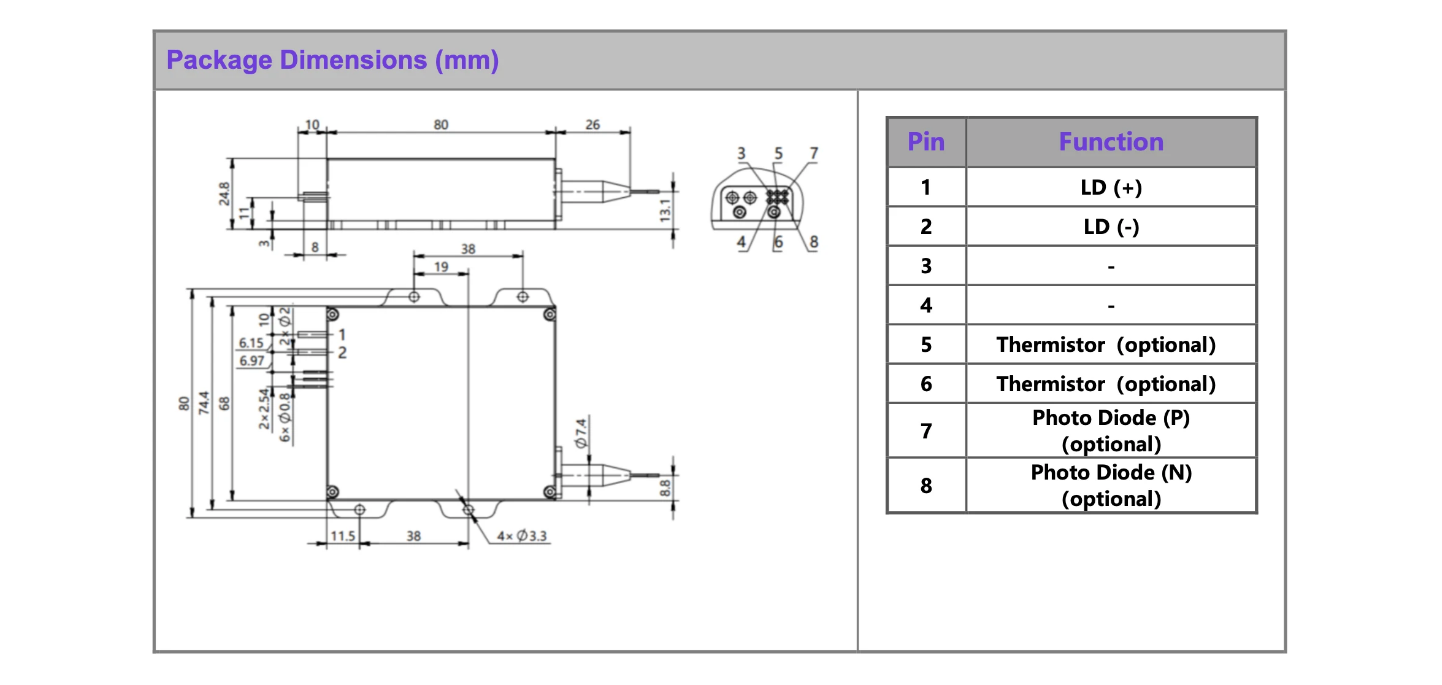

Structure Size (mm)

Instructions for use

 Avoid eye and skin exposure to direct radiation during operation.

 ESD precautions must be taken during storage, transportation and operation.

 Short-circuit is required between pins during storage and transportation.

to the middle of the pins. Soldering temperature should be lower than 260℃ and time shorter than 10 second.

cutting the fiber.

 Laser diode must work with good cooling.

 Operation temperature ranges from 20℃ to 30℃ .

 Storage temperature ranges from -20℃ to +70℃.

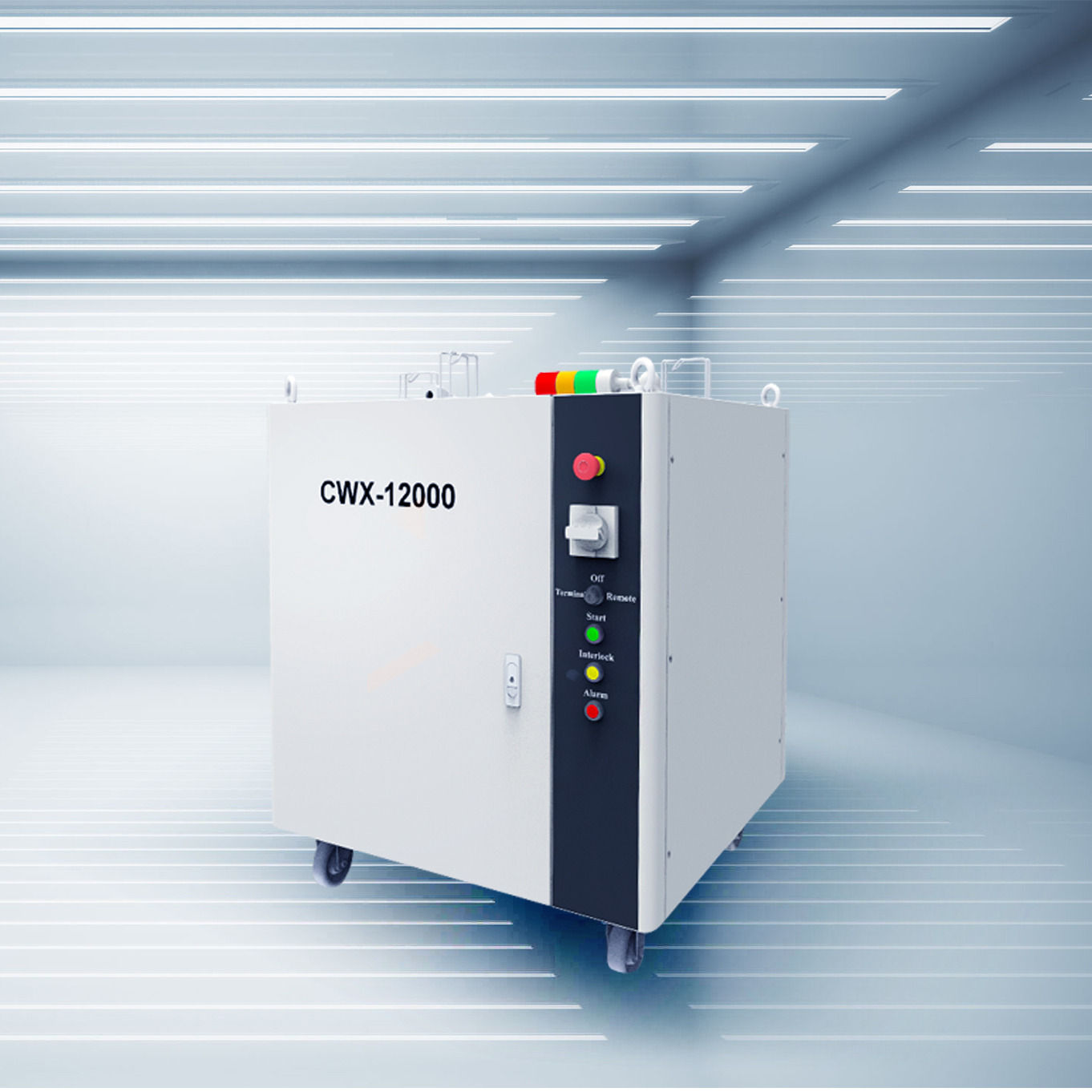

Application
